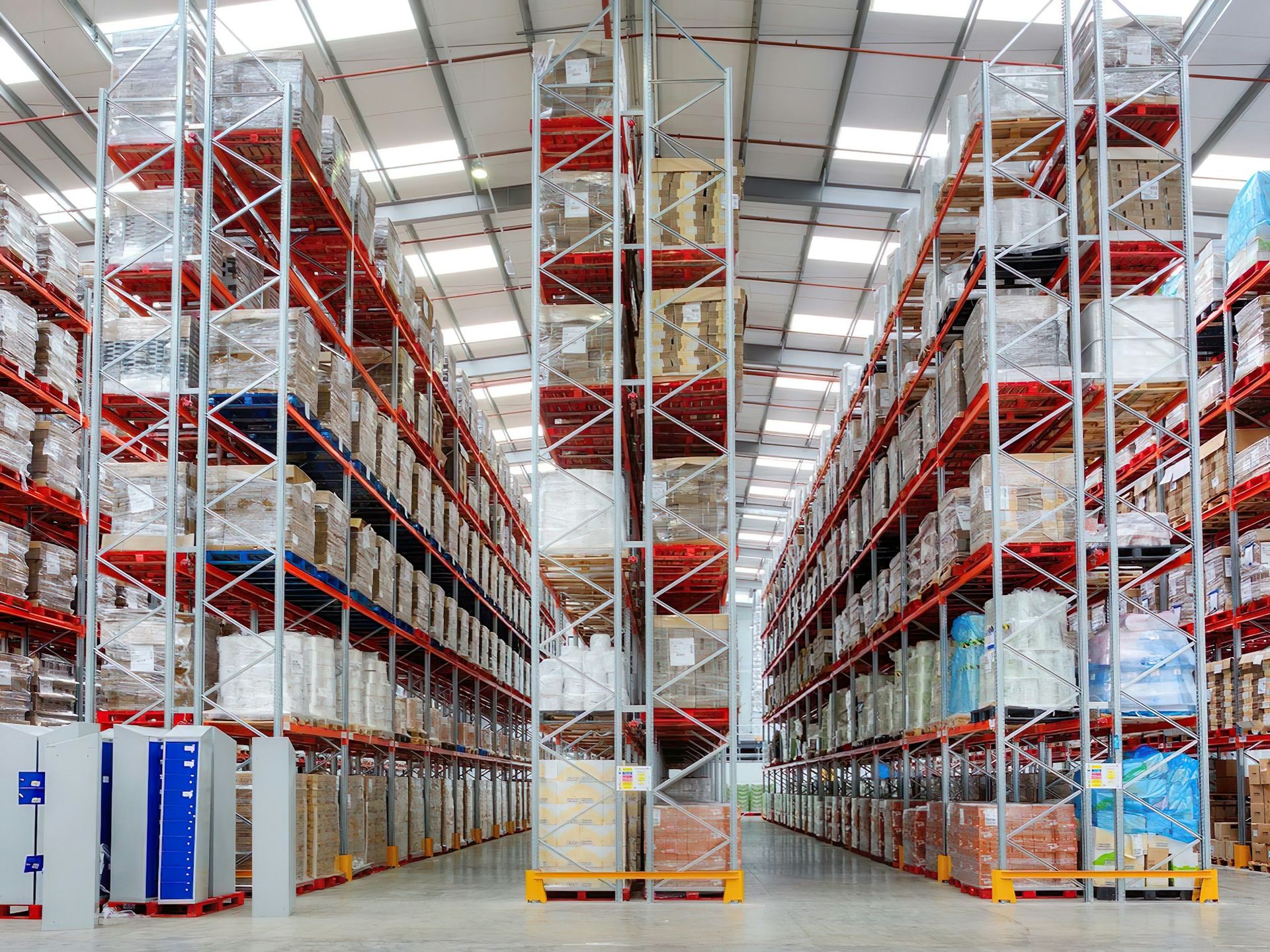

Selective pallet racking.
100% selectivity. 3-5 day lead times. CSA A344-17 aligned. The default racking system for GTA warehouses with mixed-velocity SKUs.
Every pallet, directly accessible.
Selective pallet racking is the industry-standard adjustable-beam system: front-and-rear beam pairs span between upright frames, and a forklift reaches any pallet from the aisle without moving another. That is what "100% selectivity" means — no shuffle, no LIFO constraint.
Because every pallet position is independently accessible, it is the default racking system for GTA warehouses with mixed-velocity SKUs, e-commerce fulfillment, and 50+ pallet moves per aisle per day. Beam levels are field-adjustable in 2" increments, so the system reconfigures as your SKU profile evolves.

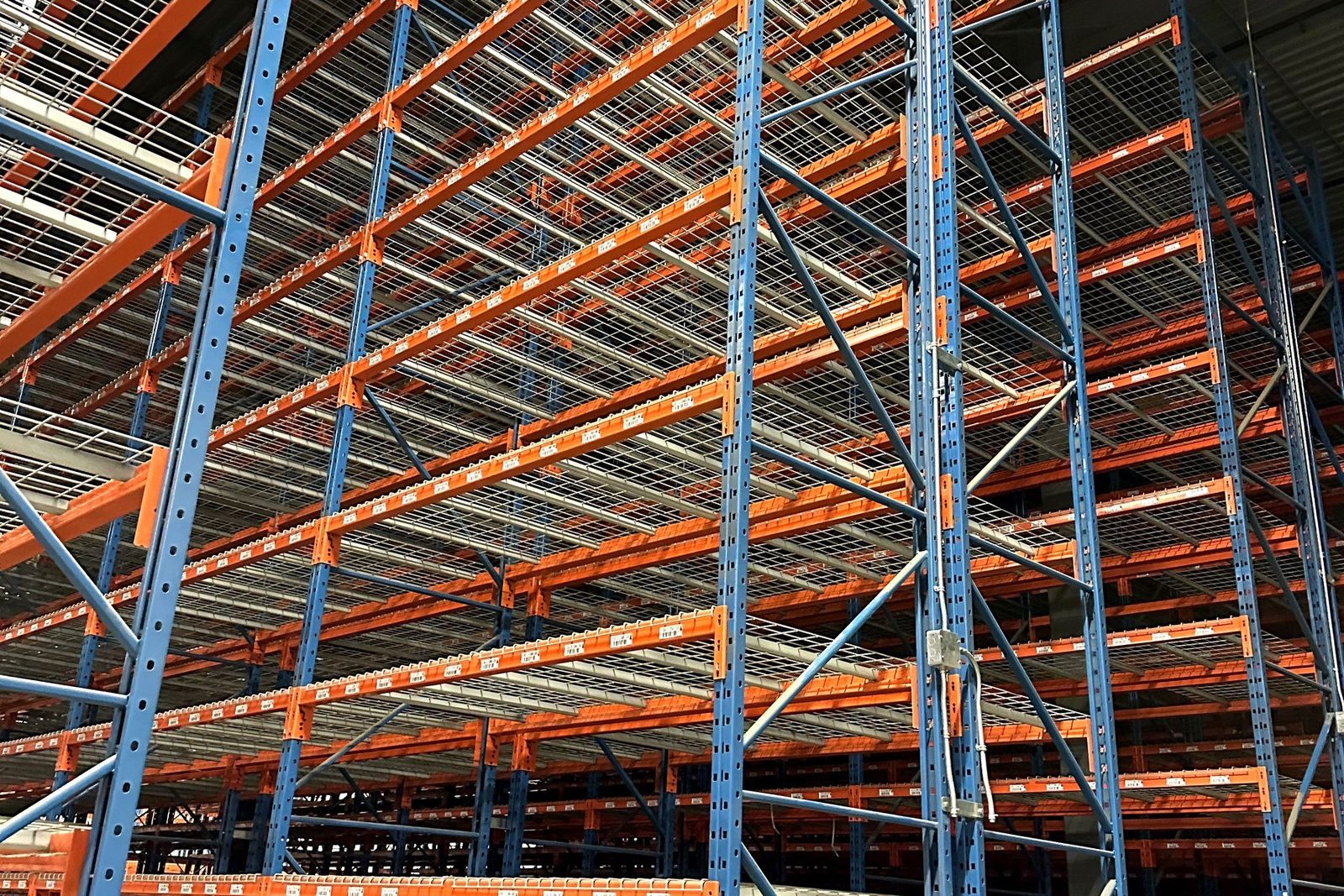

The components, labeled.
Upright Frame
Two vertical posts joined by horizontal stiffeners and diagonal braces. The structural backbone — height + load capacity defined here. 14-13ga cold-rolled steel.
Step Beam
Horizontal load-bearing member. Front + rear pair per level supports pallets. Available in 96", 108", 120" lengths. Capacity: 2,000-5,000 lb per pair.
Diagonal Brace
Welded into the upright frame for lateral stability. Prevents rocking under load. Replaced whenever a frame is impacted — never bent back into place.
Footplate
Steel plate welded to the base of each upright post. Distributes load to the slab and accepts anchor bolts. Required by CSA A344-17 on every frame.
Wire Deck (Optional)
Welded-wire mesh deck on top of beams. Required where loose items, totes, or smaller-footprint pallets are stored. Improves fire sprinkler effectiveness.
Safety Pin (Beam Connector)
Locks beam to upright. Prevents accidental disengagement during loading. Required by CSA A344-17 — every beam, every connection.
Anchor Bolt
Wedge or sleeve anchor through footplate into slab. Two per footplate minimum. Embedment depth + slab thickness must meet manufacturer spec — every install engineer-checked.
Full technical detail.
| Specification | Standard Duty | Heavy Duty | Structural |
|---|---|---|---|
| Frame Dimensions | |||
| Frame height | 8'-30' | 8'-40' | 8'-45' |
| Frame depth | 36" / 42" / 48" | 36" / 42" / 48" | 42" / 48" / 60" |
| Post profile | 3" teardrop | 3" teardrop | 3" structural C-channel |
| Post gauge | 14ga | 13ga | 11ga |
| Capacity (Beam Pair) | |||
| Beam pair capacity | 2,000 lb | 3,800 lb | 5,000+ lb |
| Frame capacity (top to floor) | 16,000 lb | 24,000 lb | 40,000 lb |
| Beam Options | |||
| Beam length | 96" / 108" / 120" | 96" / 108" / 120" | 96" / 108" / 144" |
| Beam profile | Step beam | Step beam | Structural C-beam |
| Beam connector | Pin + safety clip | Pin + safety clip | Bolted |
| Finish & Compliance | |||
| Finish | Powder-coat orange or blue | Powder-coat orange or blue | Galvanized or powder-coat |
| CSA A344-17 aligned | ✓ | ✓ | ✓ |
| ANSI MH16.1 (RMI) certified | ✓ | ✓ | ✓ |
| Operations | |||
| Lead time | 3-5 business days | 5-7 business days | 2-3 weeks |
| Install crew size | 2-3 | 3-4 | 4-6 |
| Install rate (bays/day) | 15-20 | 12-15 | 8-10 |
Selective Pallet Racking — engineered to your spec
Send your warehouse dimensions + SKU profile + throughput target. We'll come back with a stamped layout + itemized quote within 5 business days. Engineer-stamped drawings available.
Where selective pallet racking wins.
Mixed-velocity SKUs
When you need to pick any pallet at any time. 100% selectivity means every pallet is directly accessible — no shuffle, no LIFO constraint.
High picking frequency
E-commerce fulfillment, parts distribution, food-service distribution — anywhere pick frequency > 50 pallets/day per aisle.
Variable pallet sizes
Beam levels are field-adjustable in 2" increments. Heights can be reconfigured as your SKU profile evolves — no recommissioning.
Where selective earns its keep.
Mixed-velocity warehouses where any pallet must be reachable on demand. E-commerce fulfillment and parts distribution with high pick frequency. Operations that re-merchandise as the SKU profile shifts. If selectivity matters more than raw cube, selective racking is the default — and the fastest to install, at 15-20 bays a day.
